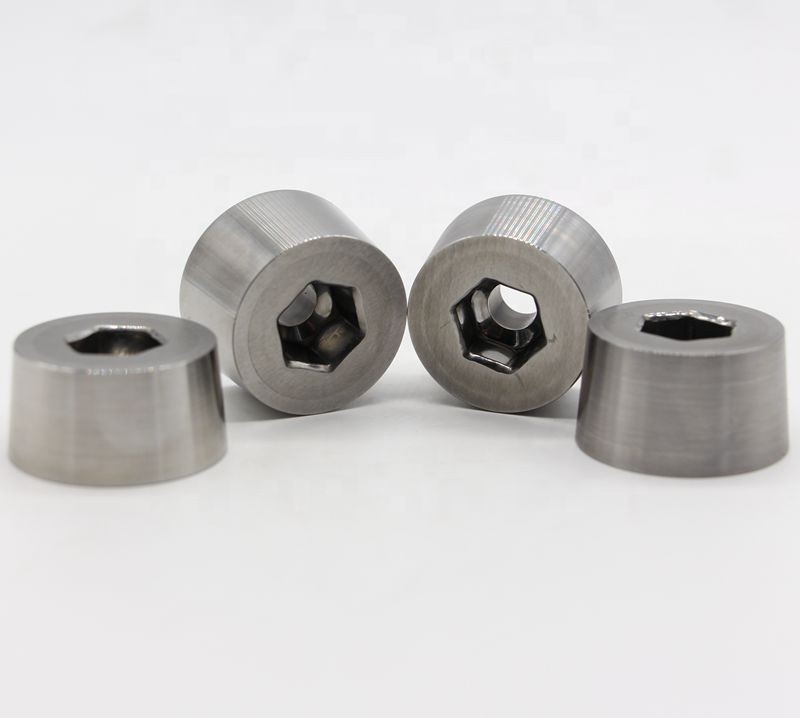

M2-M64 Steel Nut Die Customized For DIN Standard Hardware Fasteners

Product Categories

Dongguan Fanchi Mold Technology Co., Ltd

Contact Now

Name: M2M64 Steel Nut Die Customized For DIN Standard Hardware Fasteners
Brand: Henghui
Price: 35.00 USD

Place of Origin : Chongqing, China

Brand Name : Henghui

Model Number : Customized

Packaging Details : export standard wooden box, or as client's requirement.

Supply Ability : 3000 Piece/Pieces per Month

Price : $35.00 - $60.00/pieces

Shaping Mode : Die Casting

Product Material : Steel

Product : Vehicle Mould

Product Name : nut die

Size : M2-M64

Material : Steel/P20/718/Nak80/S316/AISI H13/Resin/silicon Rubber

Delivery Time : 5-35

MOQ : 1 Piece

Machine : CNC Lathe

Quality : High Quanlity

Package : Carton

Surface treatment : Polishing

Type : Mold+CNC Process

Port : Carton, Wooden box; export standard package,or as client's requirement of trimming dies

Contact Now

Sample Available Nut Die For DIN Standard Hardware Fasteners M3 Carbon Steel Round Weld Nut

Main material: Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance
